Works with any brand of sensor

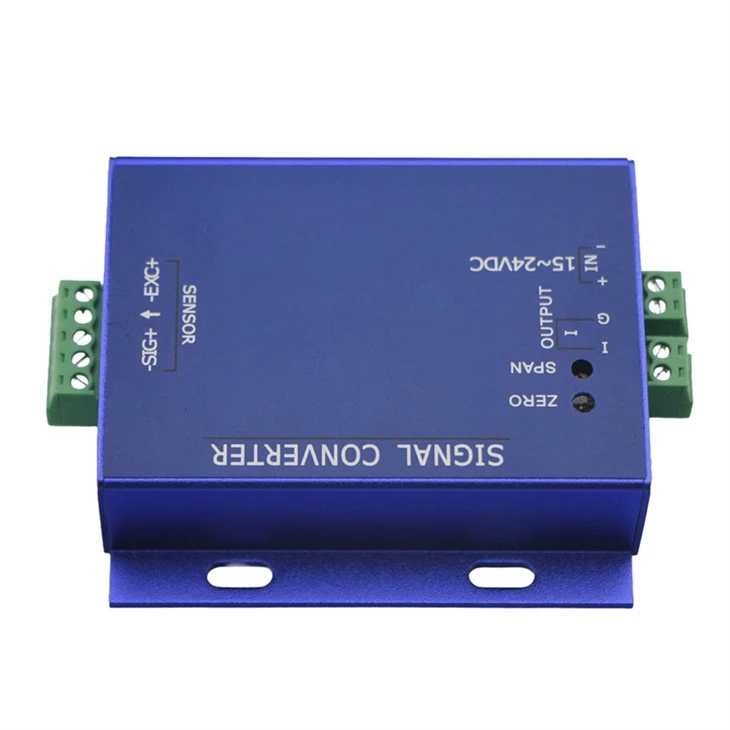

Some factories mix different brands of load cells. Our weight transmitter load cell has an input impedance of ≥10MΩ. It works with any strain gauge sensor with 1-3 mV/V sensitivity. Output accuracy is 0.05% FS. Response is under 10ms. A maintenance supervisor said: "With this one model, I can fix all my scales."
Parameters and installation (table format)
|
Parameter |
Value |
|
Output accuracy |
0.05% FS |
|
Response time |
<10 ms |
|
Input sensitivity |
1-3 mV/V |
|
Input impedance |
≥10 MΩ |
|
Housing |
Die-cast aluminum, 22.5×100×115 mm |
|
Mounting |
Standard 35mm DIN rail |
|
Operating temperature |
-20℃ to +70℃ |
|
Power supply |
12-30 VDC, power consumption ≤2W |
|
Excitation voltage |
5V or 10V, drives up to 4 sensors (350Ω each) |
|
Output protection |
Short circuit and overload protected |
|
Terminals |
Removable pluggable |
|
Indicators |
Green LED (power), red LED (peak alarm) |
Adjustable filter, no computer needed
We include DIP switches. Users can select filter cutoff frequency based on site noise: 10Hz, 50Hz, 100Hz, or 200Hz. On the panel, there are coarse zero and coarse span potentiometers. There are also precision multi-turn potentiometers for fine adjustment. No computer needed for calibration. Need remote calibration? Add an RS485 interface with Modbus RTU. We also have an Ex ia explosion-proof version. A common question: "Can your weight transmitter load cell be used with a 6-wire sensor?" Yes, but you may need to short sense wires. Yixing Silvanus Electric Manufacture Co., Ltd. has been making signal conditioners since 2007. Choosing us means any sensor can easily connect to your industrial control system.
