Turn a normal tank into a scale in half a day
A paint factory in Qingdao wanted to turn a 5-ton reactor into a weighing tank. They bought our weigh module. Four units, each 2-ton capacity. They followed the drawing, put the modules under the legs, connected the wires. Half a day later, it was done. The indicator showed weight. They checked against a floor scale. Error was only 2 kg. The equipment manager said: "I didn't know it was this simple."

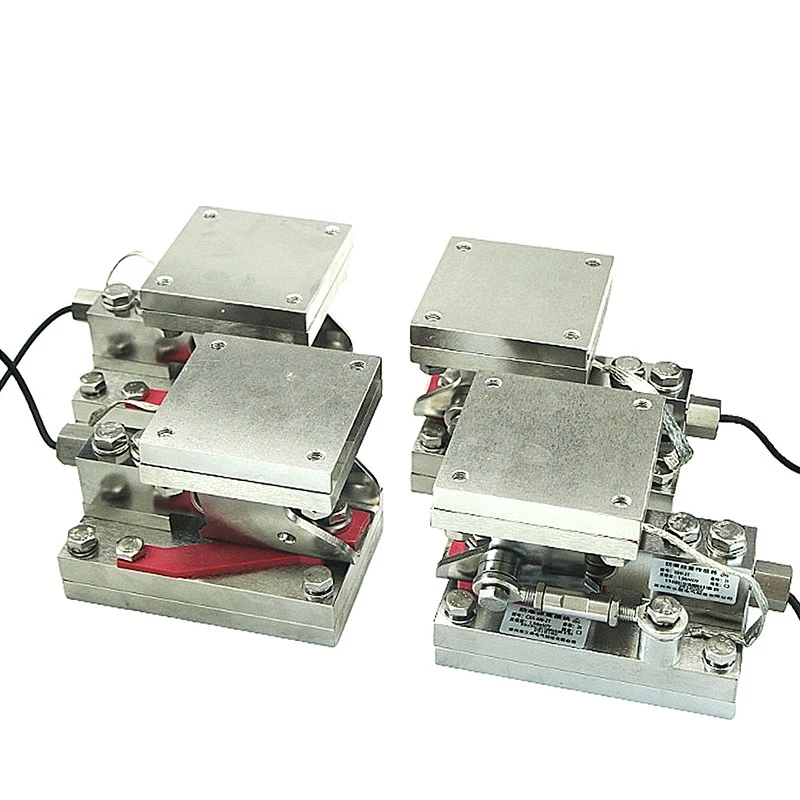

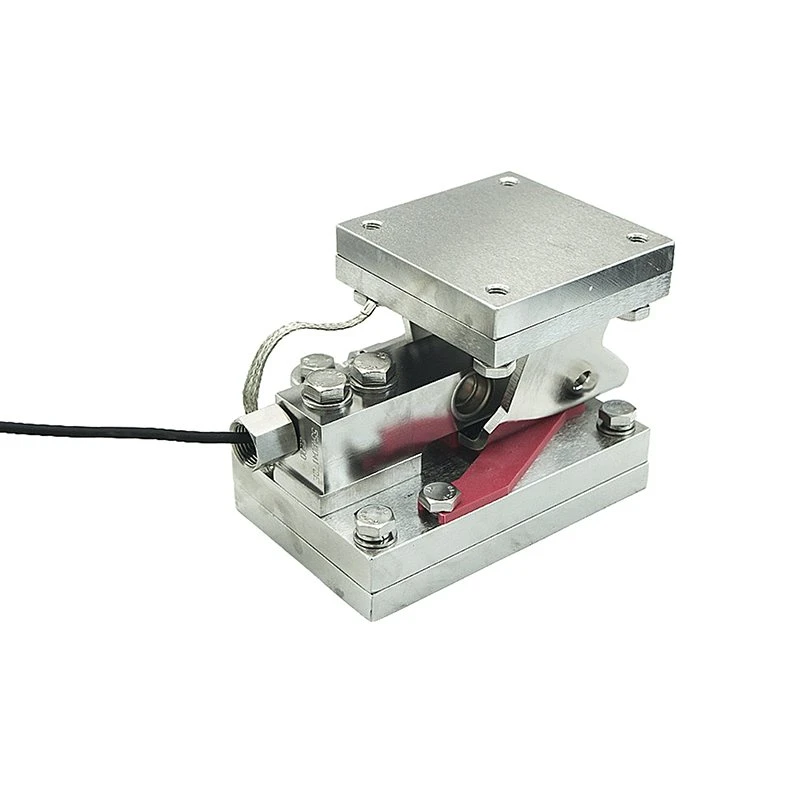

What is included in the module
|
Parameter |
Value |
|
Capacity range |
100 kg to 100 tons |
|
Accuracy class |
C3 |
|
Material options |
Carbon steel zinc plated, or stainless steel |
|

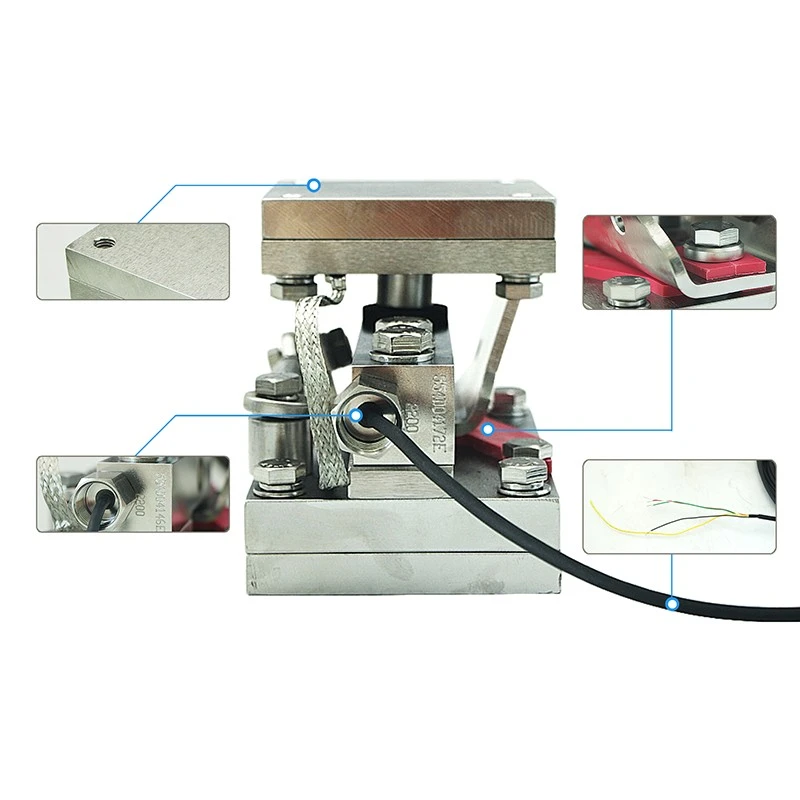

Each module includes |
Sensor, top plate (with locating pin), bottom plate, anti-tilt bolt, optional tie rod, rubber anti-slip pad |
|
Top plate feature |
Spherical self-aligning rocker column |
|
Rocker column function |
Maintains vertical force when equipment tilts due to heat or cold |
|
Anti-tilt bolt function |
Prevents tipping from side forces (mixer vibration, wind) |
Three or four point support with summing junction box
We provide 3-point (tripod) or 4-point (square) support based on your equipment shape. A stainless steel junction box sums up to 8 modules. It has precision potentiometers for corner adjustment. We also have a digital junction box version. Each module outputs a digital signal independently. The indicator calculates corner corrections automatically. No manual potentiometer tuning. A common question: "Can your weigh module handle a mixer that shakes?" Yes, the anti-tilt bolt and rubber pad handle side forces. Yixing Silvanus Electric Manufacture Co., Ltd. has been making mounting kits since 2007. Choosing us turns your non-standard equipment into a smart scale at low cost and in short time.
