An OEM customer's favorite one-stop solution

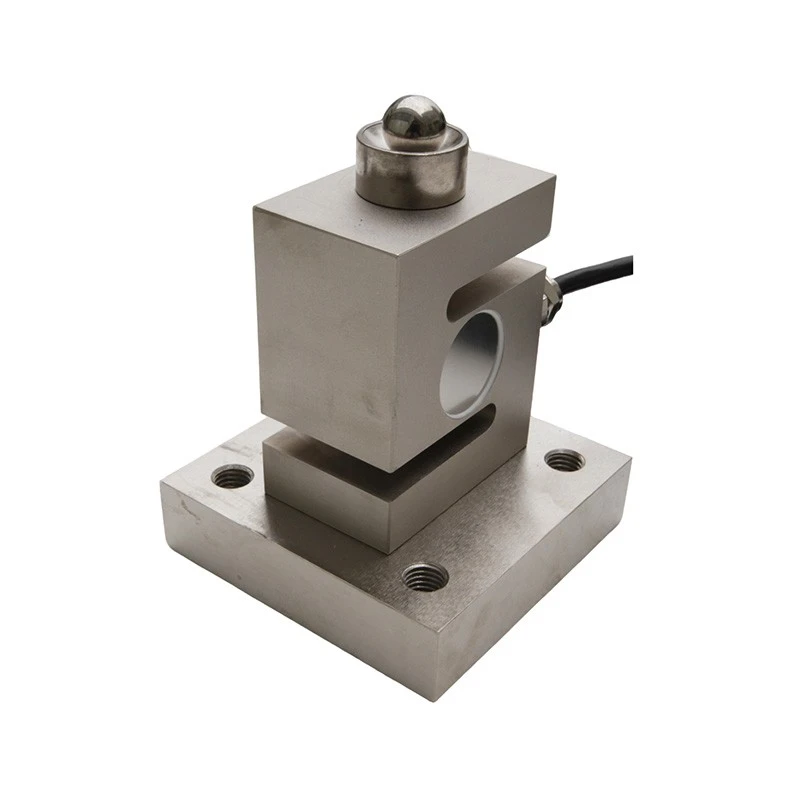

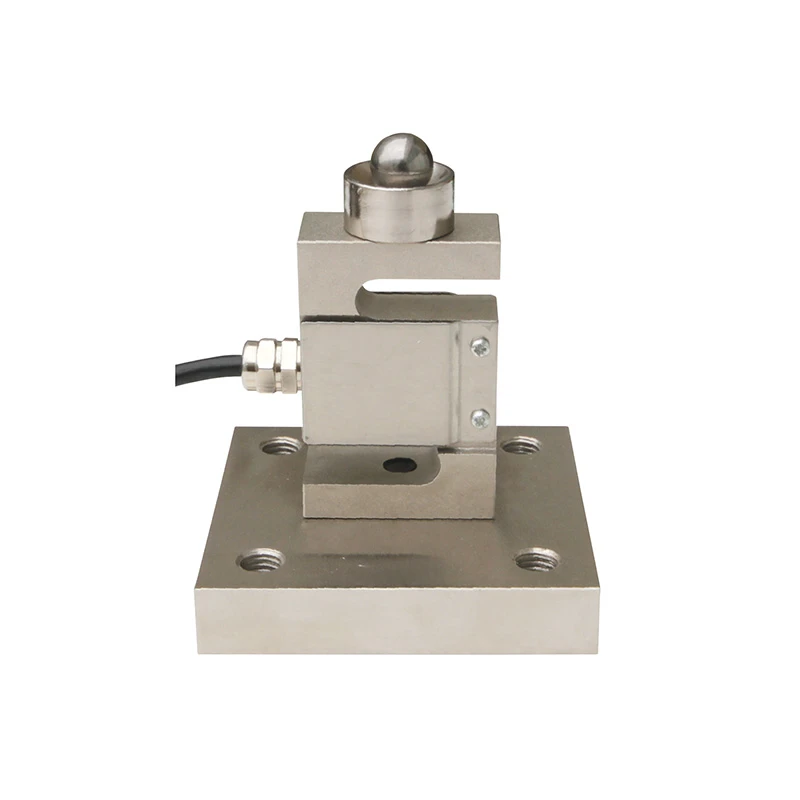

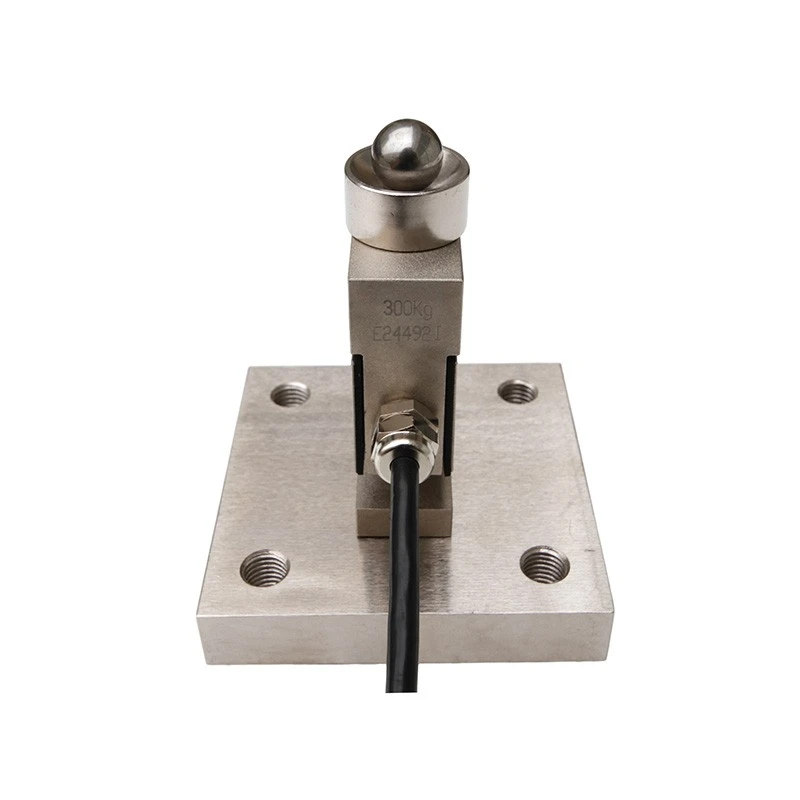

A packaging machine maker in Shenzhen used to buy sensors, bases, and transmitters separately. Then they assembled, wired, and debugged each machine. That took an extra half day per machine. Then they bought our load cell mounting assembly. The sensor, mounting base, pressure head, cable, aviation plug, and transmitter were all pre-assembled and pre-calibrated. They received it, fixed it to the machine, powered it on, and it worked. Now they save 500 man-hours per year.

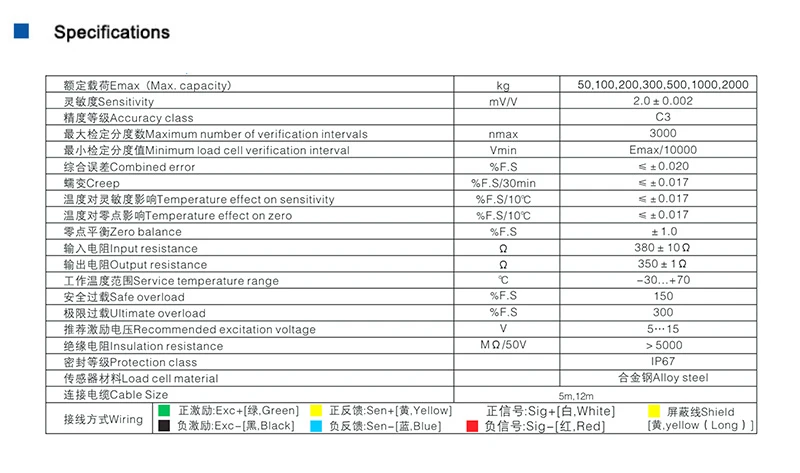

Parameters and pre-assembly process
|
Parameter |
Value |
|
Capacity range |
10 kg to 50 tons |
|
Accuracy class |
C3 |
|
Assembly environment |
Clean room |
|
Fastener torque |
Precision torque wrench to standard values |
|
Cable connection |
One-piece molded or metal armored, pull strength ≥200N |
|
Testing |
100% room temperature test, 20% sample high-low temp test (-20℃ to +60℃) |
|
Documentation |
Factory test report with unique serial number |
Built-in amplifier: multiple output options

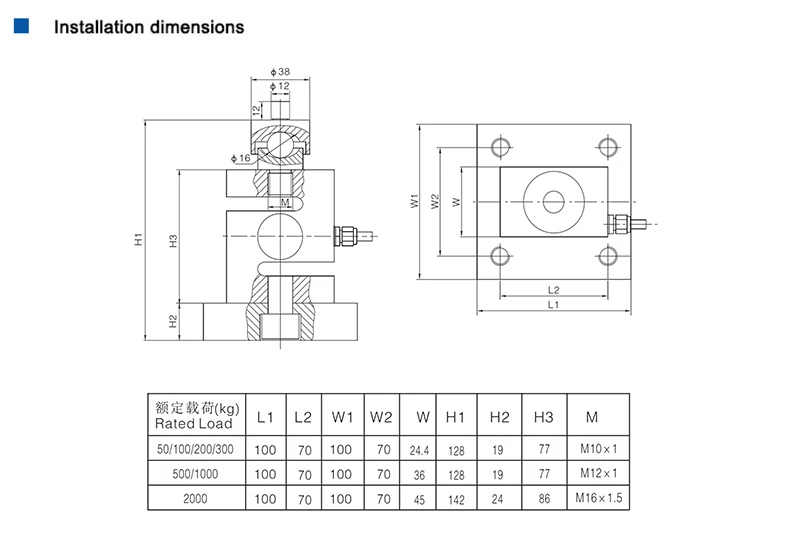

We can integrate an analog transmitter (4-20mA/0-10V) or digital transmitter (RS485/Modbus/CANopen) inside the load cell mounting assembly. You connect directly to your PLC's analog or serial port to read weight. We can also customize the shape and mounting hole pattern to seamlessly replace old sensors. A common question: "Can you make a load cell mounting assembly to match my existing bolt pattern?" Yes, send us a drawing. Yixing Silvanus Electric Manufacture Co., Ltd. has been making custom assemblies since 2007. Choosing us improves your equipment integration efficiency by more than 50%.
