A feed mill says goodbye to "out-of-material shutdowns"
A feed mill in Henan used to check material levels by hitting the silo with a hammer. They often ran out and had to stop production. We installed a hopper weighing scale on each of their four silos. Three modules per silo. The indicator shows real-time weight. We set a low-level alarm at 5 tons. When it hits that, automatic refill starts. They have not stopped for lack of material since. The factory director said: "That investment paid back in three months."
Parameters and design (table format)
|
Parameter |
Value |
|
Capacity range |
1 ton to 500 tons |
|
Accuracy |
0.1% FS |
|

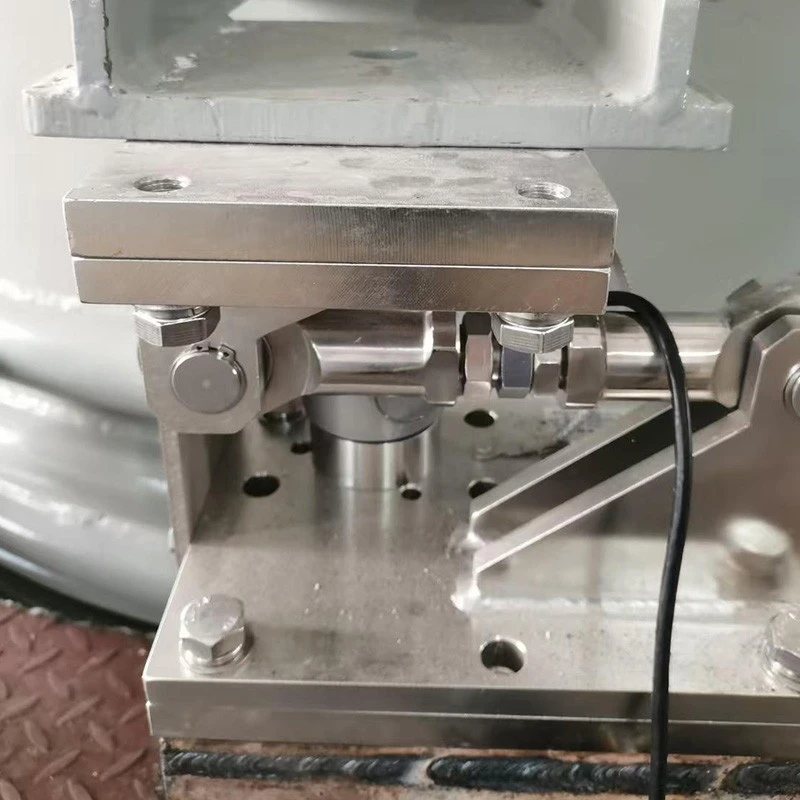

Module contents |
Sensor, top/bottom plates, anti-tilt bolt, tie rod |
|
Top plate |
Spherical rocker column, self-aligning |
|
Rocker column tolerance |
Handles ±5° silo tilt |
|
Anti-tilt bolt gap |
3-5 mm (does not affect weighing, prevents tipping) |
|
Tie rod function |
Absorbs horizontal forces from thermal expansion |
|
Sensor protection |
IP68 |
|
Junction box |
Stainless steel, sealed to IP67 |
|
Cable sheath |
Polyurethane, oil and aging resistant |
Automatic refill, view on mobile phone
The matching indicator has continuous weighing, high/low level alarms, history curves, and inventory reports. When the level drops below the low setpoint, it outputs a switch signal to start refill equipment. When it hits the high limit, it stops. Data goes via RS485/Ethernet to a central control room for plant-wide material monitoring and automatic scheduling. We also have a mobile app to check inventory remotely. A common question: "Can your hopper weighing scale handle a dusty environment?" Yes, IP68 sensors and sealed junction box keep dust out. Yixing Silvanus Electric Manufacture Co., Ltd. has been making silo scales since 2007. Choosing us means no more "out-of-material shutdowns" or "overflow spills."
