A scrap yard owner's favorite tool

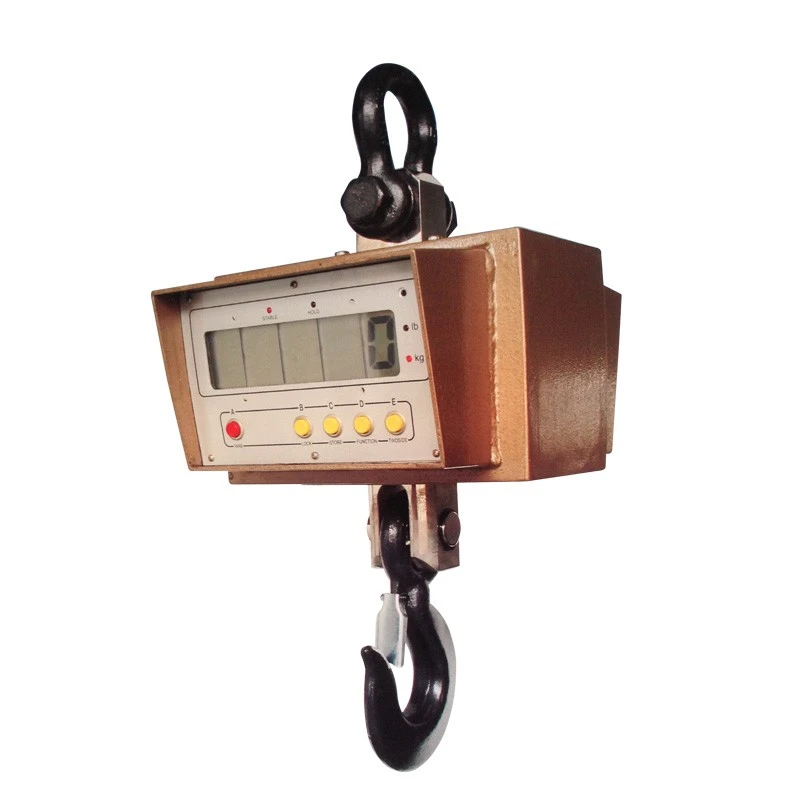

A scrap recycling station in Jiangsu used to weigh scrap iron on a bench scale. Lifting and moving was hard work. We recommended a crane hook scale with 5-ton capacity. They simply use a forklift to pick up the scrap, hang it on the scale, and read the weight on a handheld indicator. The owner said: "I saved two workers, which saves me 100,000 yuan a year in wages." Portable weighing saves labor.
Parameters and materials (table format)
|
Parameter |
Value |
|
Capacity range |
500 kg to 50 tons |
|
Accuracy |
0.1% FS |
|
Division value |
0.2 kg to 20 kg |
|
Main body |
Cast steel or high-strength aluminum alloy housing |
|
Hooks |
Alloy steel forged, heat treated, safety factor 4x (5-ton scale withstands 20 tons static without breaking) |
|
Load cell type |
S-type or spoke type, overload capacity 200% FS |
|
Display options |
Integrated (on the scale body) or wireless handheld (100 meters range) |
|
Battery |
Rechargeable lithium, 100 hours continuous, low battery alarm |
|
Remote control functions |
Tare, zero, hold |
Wireless printing and data storage
We offer wireless printing. The handheld indicator connects to a micro thermal printer. One button prints a weight ticket with time, weight, and serial number. The indicator stores 2,000 weighing records. You can export via USB or Bluetooth to a phone. We also have an overload alarm light and buzzer. For hazardous areas, we have an Ex ib IIB T4 intrinsically safe version. There is also a hook-and-force-gauge combo version that switches between weighing and pull testing modes. A common question: "Can your crane hook scales be used in the rain?" Yes, but keep the indicator dry. Yixing Silvanus Electric Manufacture Co., Ltd. has been making portable scales since 2007. Choosing us makes mobile weighing as easy as hanging a hook.
