Real feedback from a test equipment maker
A factory in Suzhou used to buy imported micro force transducers. The price was high and delivery was slow. We gave them our micro force transducer. They put it on a material testing machine. After 1,000 tests, the data stayed stable. Their purchase manager said: "The performance is almost the same as the imported one, but the price is half." Now they order from us every batch. Our micro force transducer proves that small sensors can be very reliable.
Full technical parameters (table format)
|
Parameter |
Value |
|
Rated load |
5 – 1000 lb |
|
Sensitivity |
1.0 ± 0.2 mV/V |
|
Accuracy class |
D1 |
|
Max. number of verification intervals (nmax) |
1000 |
|
Minimum verification interval (Vmin) |
Emax/2000 |
|
Combined error |
≤ ±0.10% F.S. |
|
Creep |
≤ ±0.10% F.S./30min |
|
Temp. effect on sensitivity |
≤ ±0.05% F.S./10℃ |
|
Temp. effect on zero balance |
≤ ±0.04% F.S./10℃ |
|
Zero balance |
±1.0% F.S. |
|
Input resistance |
350 ± 10 Ω |
|
Output resistance |
350 ± 3 Ω |
|
Operating temp. range |
-30 ~ +70 ℃ |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
200% F.S. |
|
Recommended excitation |
5 – 12 V |
|
Insulation resistance |
>5000 MΩ/50V |
|
Seal class |
IP66 |
|
Sensor material |
Stainless steel |
|
Cable length / diameter |
1 m / Φ1.5 mm |
Why choose our micro force transducer – three good reasons

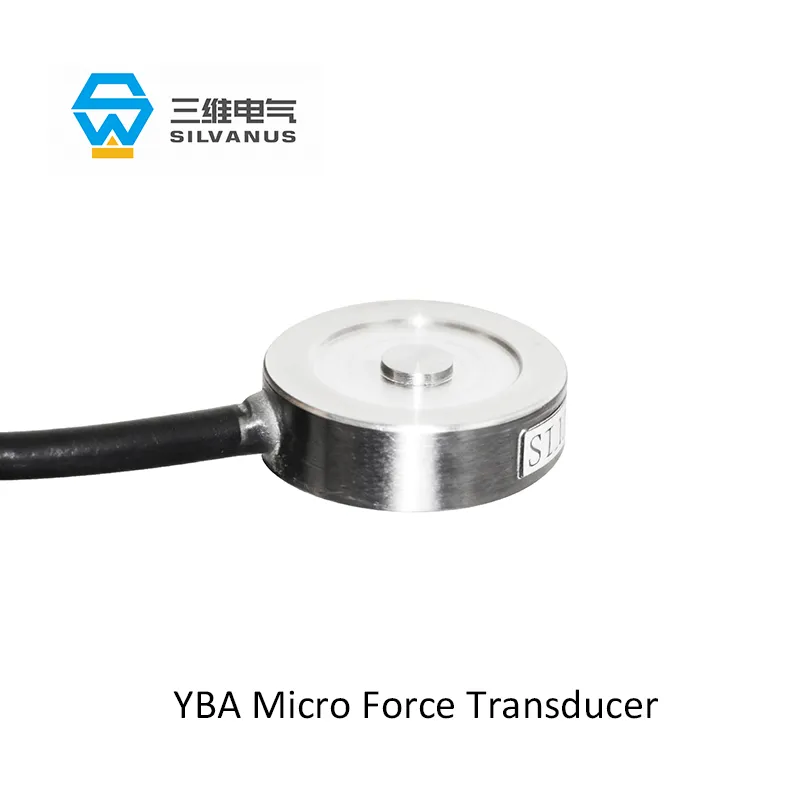

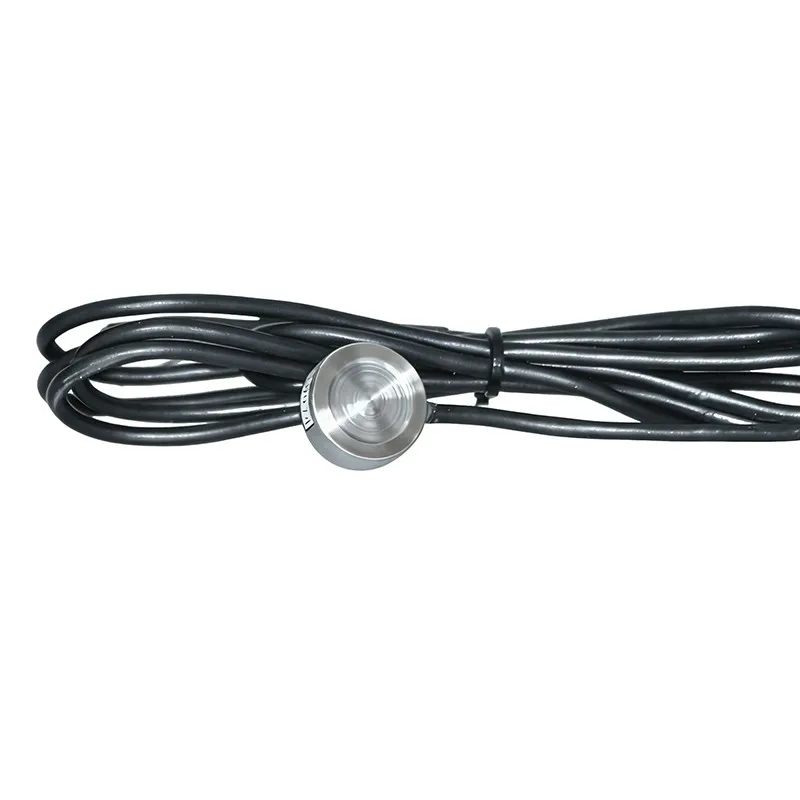

First, it is very small. The flat membrane design looks like a button. It fits in tight spaces. Second, it resists off-center loads well. Even if you install it a little crooked, the data stays steady. Third, it is well sealed against moisture. IP66 means no dust gets in, and you can wash it with water. We make it in our own factory. We control the whole process from raw stainless steel to finished product. A common question we get: "Can you make a micro force transducer for my special machine?" Yes, we can. Yixing Silvanus Electric Manufacture Co., Ltd. has been making high-precision sensors since 2007. We are not just a trader. We are a factory that helps you save costs.
